Application

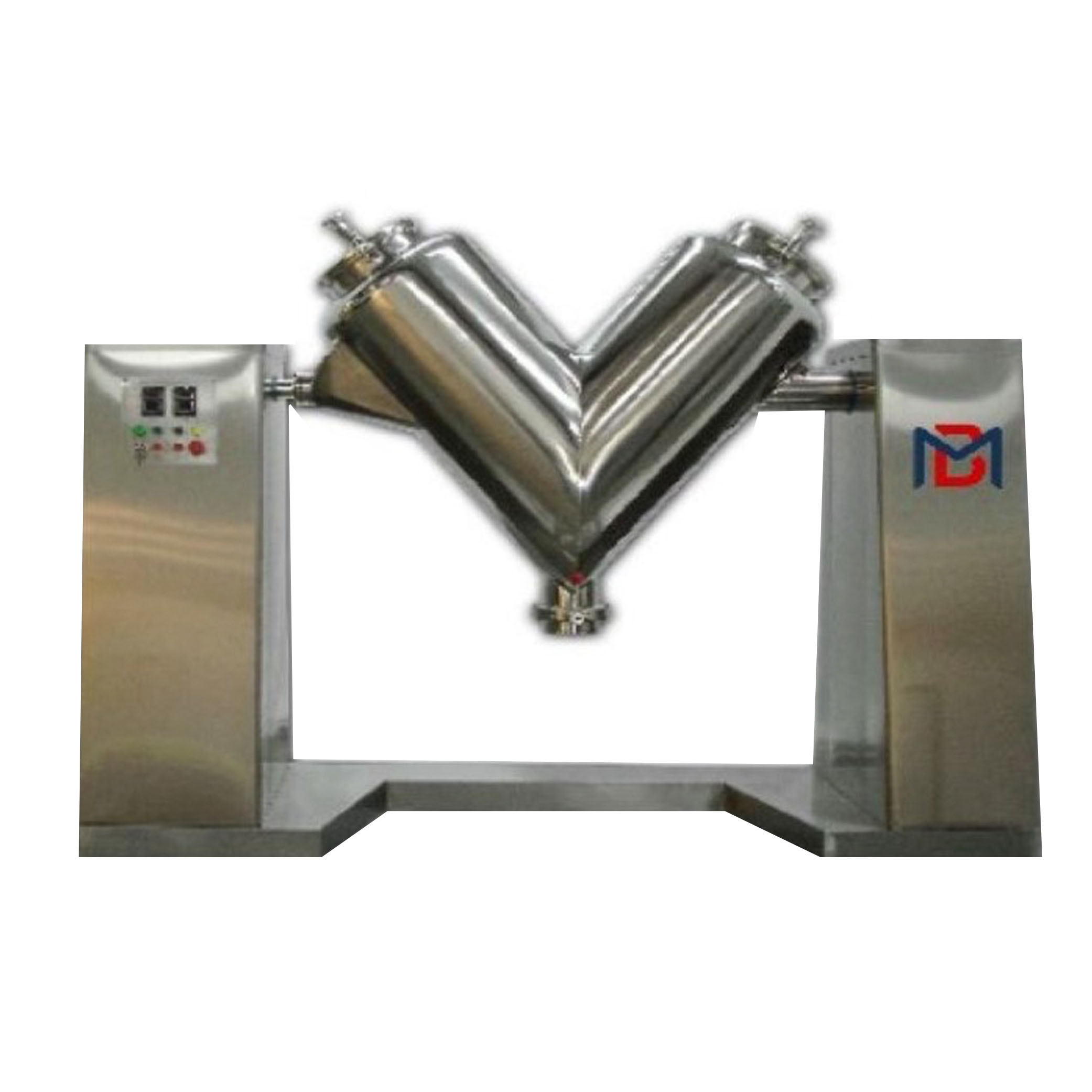

The product containers have "V" shape so it crated continuously split and recombines of the material with more tumbler and friction effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free-flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the 'V" shape blender drum. The 'V" shape blender is tumbles the material in the container and spread out.
Salient Features
- All contact parts S.S. 316 & non-contact parts S.S. 304.
- Available Capacity: 1 kg to 500 kg batch size.
- 'V' shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch.
- Enclosed rigid drive with reduction gear box and motor.
- Product container having discharge with butterfly valve and man hole.
- 2 Nos. Charging hole with hinged lid with seal for charging and cleaning.
- Safety reeling provided for rotating area of product container.
- Fixed baffles provided for lumps braking.
- Electric controls panel with cycle time.
- Safety reeling with limit switch.
- Overload protection and emergency stop..
Optional Accessories
- Interchangeable with different capacity 'V" shape product container.
- Rotary Intensifier with AC variable drive.
- AC Frequency variable drive for product container.
- PLC Controls with HMI touch screen
- Flame proof motor and Push Button station.
- Inline milling and loading with vacuum transfer systems.
Technical Specification
| Model / Size | BMVB 25 | BMVB 50 | BMVB 100 | BMVB 300 | BMVB 500 | BMVB 750 | BMVB 1000 | BMVB 2000 |
| Gross Volume (Litters) | 25 | 50 | 100 | 300 | 500 | 750 | 1000 | 2000 |
| Working Volume (Litters) | 18 | 35 | 70 | 210 | 350 | 450 | 700 | 1400 |
| Motor [HP] | 1.0 | 2.0 | 3.0 | 3.0 | 5.0 | 7.5 | 10.0 | 15.0 |
