Application

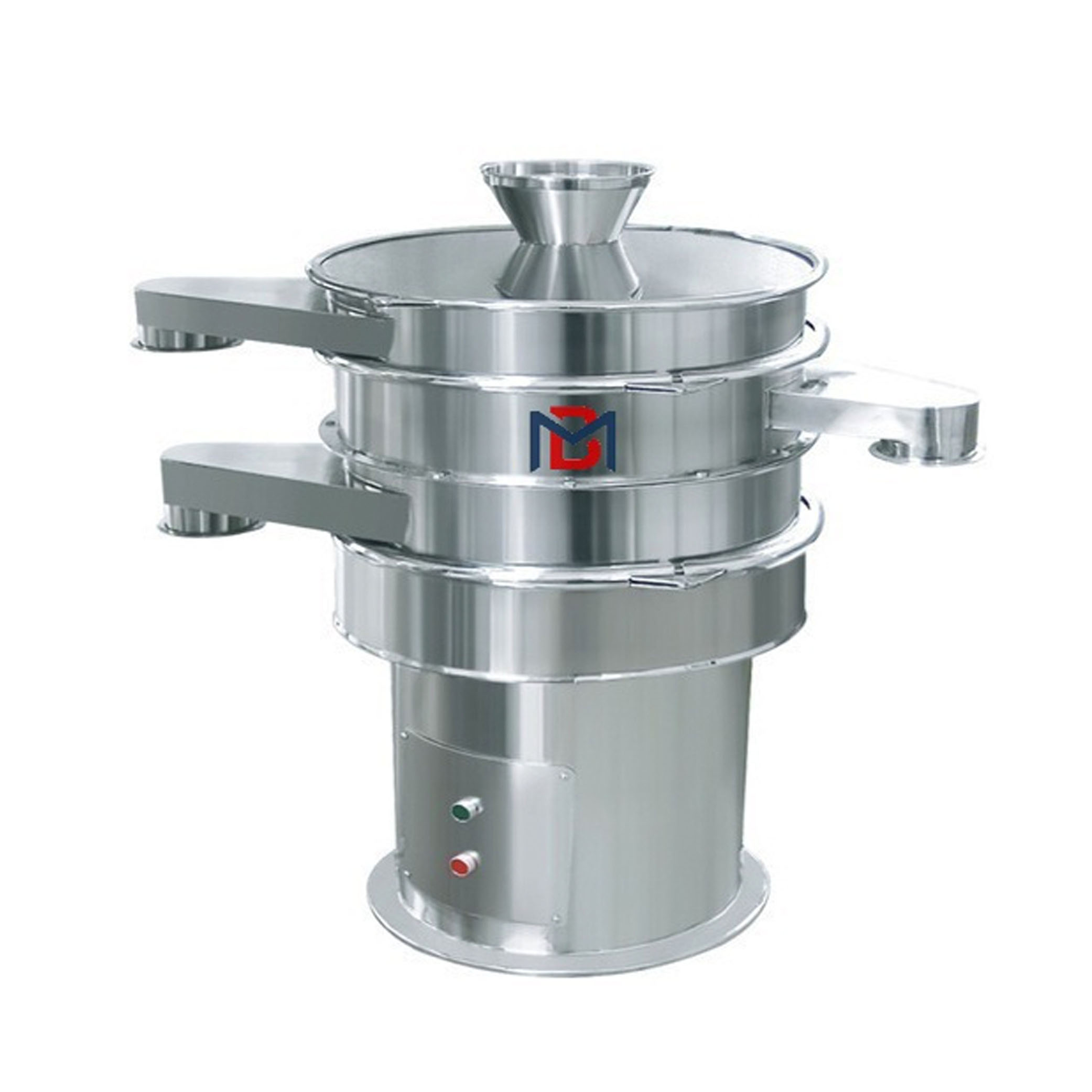

The Vibro Sifter consists of a motor that drives an eccentric weight assembly, creating vibrations. These vibrations are transmitted to the screen assembly, which is composed of multiple screens or decks with different mesh sizes. As the material to be separated is fed onto the top screen, the vibratory motion causes it to spread out and move progressively down the screen surface.
Smaller particles, which can pass through the mesh openings, fall through the screen, forming the undersize fraction. Larger particles, unable to pass through the mesh, continue moving towards the discharge end, forming the oversize fraction. By adjusting the angle of the weights and the screen inclination, operators can control the flow of material and optimize the separation process.
Salient Features
- In compliance with cGMP guidelines with Low capital cost.
- Machine are designed on the principle of gyratory motion generated by double eccentric weight mounted on two ends of the shaft of vertically mounted specially designed vibro motor.
- Continuous feed – Continuous Discharge.
- Noiseless, Maintenance free & high-speed machine.
- Silicon moulded lead-free sieves.
- All contact parts and screen of AISI stainless steel 316 material.
- AISI stainless steel 316L quality contact parts optional.
- Standard machine is with non-flame proof motor explosion proof.
Optional Accessories
- Flame Proof Construction
- Variable Frequency Drive
- Extra Sieves
Technical Specification
| Model / Size | BMVS 12” | BMVS 20” | BMVS 30” | BMVS 36” | BMVS 48” |
| Output [Kg/Hr] * | 5 to 20 | 20 to 100 | 30 to 200 | 40 to 300 | 50 to 400 |
| Motor [HP] | 0.25 | 0.5 | 0.5 | 1.0 | 2.0 |
