Application

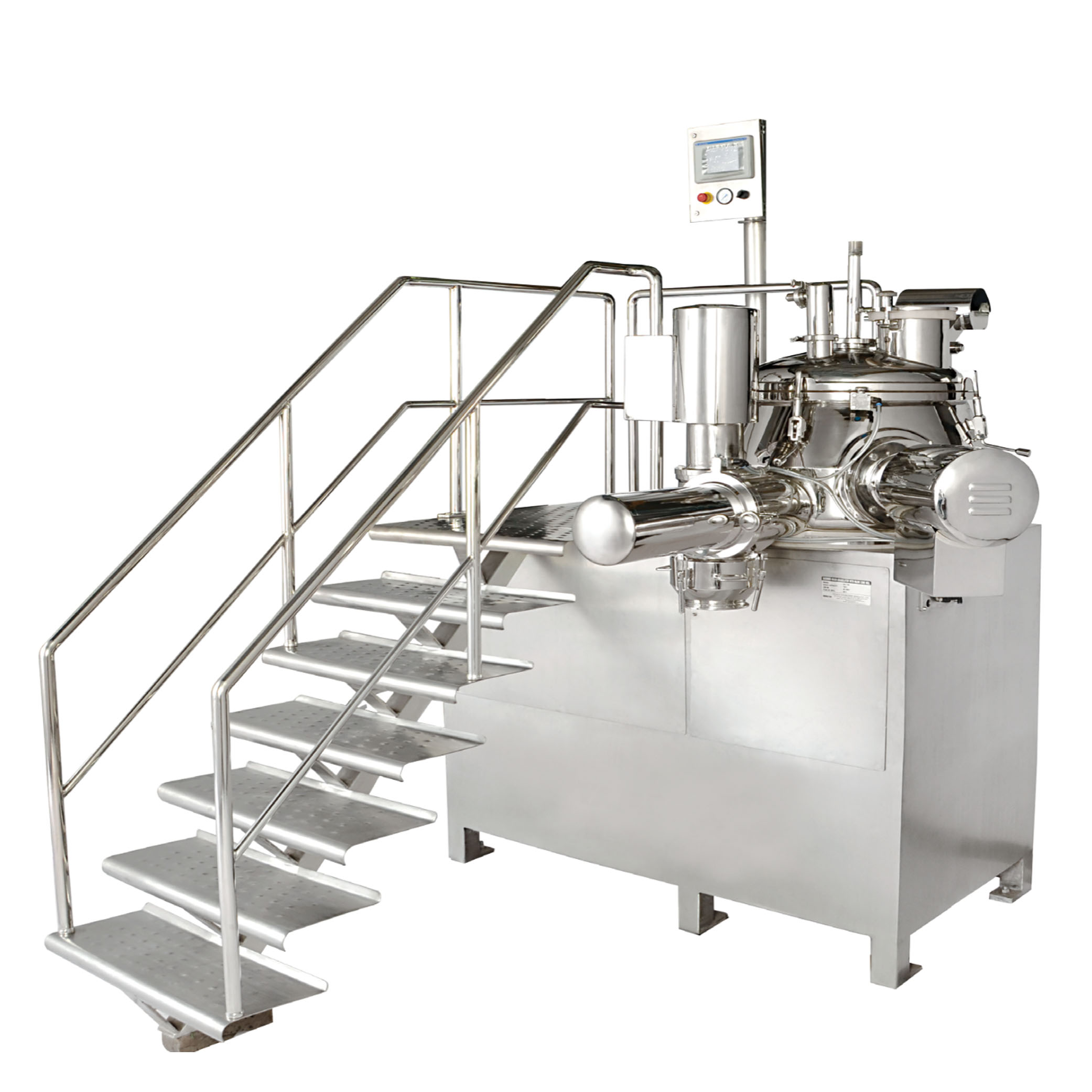

The RMG operates on a principle of agitation and high-speed rotation. The powders or granules to be granulated are loaded into the mixing bowl. As the impeller and chopper blades rotate at high speed, they create a vigorous mixing action, ensuring uniform distribution of all ingredients.
During the mixing process, a binding solution or solvent can be sprayed onto the powders, causing them to agglomerate and form granules. The chopper blades help in the size reduction of the granules and break down any oversized particles. The granules are continuously mixed and granulated until the desired particle size and consistency are achieved.
Salient Features
- Design is cGMP - Current Good Manufacturing Practices compliance.
- In Vacuum Rated Design.
- Manually Operated with Push Button or PLC and Colour Touch Screen based controls.
- Pneumatically operated top lid.
- Pneumatically operated discharge.
- Heavy duty square tube main structure without platform and stair case.
- Anti-vibration pad.
- In-house pressure tested 2 Bar
Optional Accessories
- Flame Proof Construction.
- Steam Jacketed Bowl.
- Wet Sizing Mill.
- Variable Frequency AC Drive for Impeller & Chopper.
- Impeller lifting from top.
- Provision for 21 CFR Part 11 Compliance.
- Pneumatic Conveying System for RMG Loading with Inline Sifting System.
Technical Specification(Lab Scale)
| Model / Size | BM RMG 2.5 | BM RMG 5 | BM RMG 10 | BM RMG 15 | BM RMG 25 |
| Gross Volume (Liters) | 2.5 | 5 | 10 | 15 | 25 |
| Working Volume (Liters) | 2 | 4 | 8 | 12 | 20 |
| Impeller Motor HP | 2.0 | 2.0 | 2.0 | 2.0 | 3.0 |
| Chopper Motor HP | 0.50 | 0.50 | 0.75 | 0.75 | 1.0 |
| Approx. Weight (In Kg) | 200 | 270 | 500 | 600 | 1000 |
Technical Specification(Production Scale)
| Model / Size | BM RMG 50 | BM RMG 100 | BM RMG 150 | BM RMG 200 | BM RMG 250 | BM RMG 300 | BM RMG 400 | BM RMG 600 | BM RMG 800 | BM RMG 1000 | BM RMG 1200 | BM RMG 1400 | BM RMG 1800 |
| Gross Volume (Liters) | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1800 |
| Working Volume (Liters) | 40 | 80 | 120 | 160 | 200 | 240 | 320 | 480 | 640 | 800 | 960 | 1120 | 1360 |
| Impeller Motor HP) | 7.5 | 10 | 15 | 25 | 30 | 35 | 40 | 50 | 60 | 75 | 100 | 120 | 140 |
| Chopper Motor HP | 2.0 | 3.0 | 3.0 | 5.0 | 5.0 | 5.0 | 7.5 | 10.0 | 12.5 | 15.0 | 20.0 | 30.0 | 40.0 |
| Approx. Weight (In Kg) | 1200 | 1500 | 1700 | 2000 | 2300 | 2500 | 3000 | 3500 | 3700 | 4000 | 4300 | 4500 | 4800 |
