Application

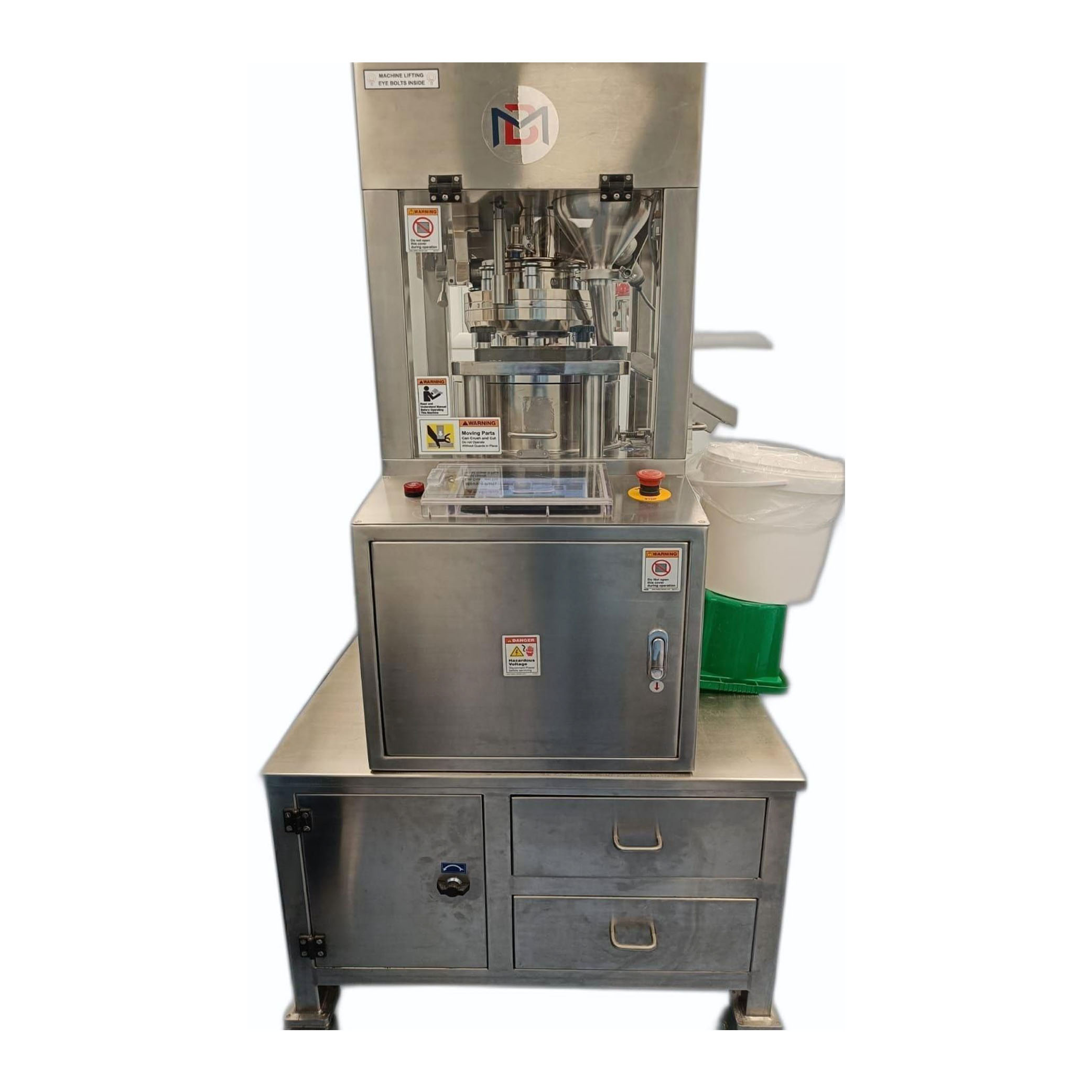

Lab Press is compact table-top machine designed as per cGMP standards, widely used for formulation & development (F&D).
Salient Features
- Machine design as per cGMP.
- All contact parts SS 316 & non-contact parts SS 304.
- Central pillar drive system fitted with gearbox.
- Paint free tablet manufacturing zone.
- Turret of special grade S.G. Iron casting.
- Pre-Compression facility.
- Compaction force through a serial of a mechanical levers.
- Upper punch penetration.
- Electric, Digital tablet cum RPM counter.
- Interlock switch to all guards.
- A.C. variable drive for main motor.
- Easy accessibility for setting maintenance and cleaning.
- Seals on lower punches.
Optional Accessories
- Rotary force powder feeder system.
- PLC controls with HMI Touch Screen Interface.
- Compaction force measurement with load cell.
Technical Specification
| Model | BMLP-08 | BMLP-10 | BMLP-08 | |
| Number of Station | 08 | 10 | 08 | |
| Type of Tooling | "D" | "B" | "D-4 & B-4" | |
| Output-Tablets/Hr* | 4800 to 14400 | 6000 to 18000 | 2400 to 7200 | |
| Max. Tablet Diameter (mm) | 24 | 16 | D-24 & B-16 | |
| Max. Depth of Fill (mm) | 20 | 17 | D-20 & B-17 | |
| Max. Operating Pressure Main | 6 Tons | |||
| Upper Punch Penetration Main (mm) | 2 to 6 | |||
| Main Motor (HP) | 2.0 | |||
| Overall Dimensions – W x D x H (mm) | 580 x 780 x 1050 | |||
| Net Weight (Kg) | 450 | |||
| Gross Weight (Kg) | 570 | |||
*Machine output mention is rated outputs and can vary depending on the product characteristics, tablet dimensions/shape/size/depth of fill/ambient condition/operator skills & machine maintenance.
