Application

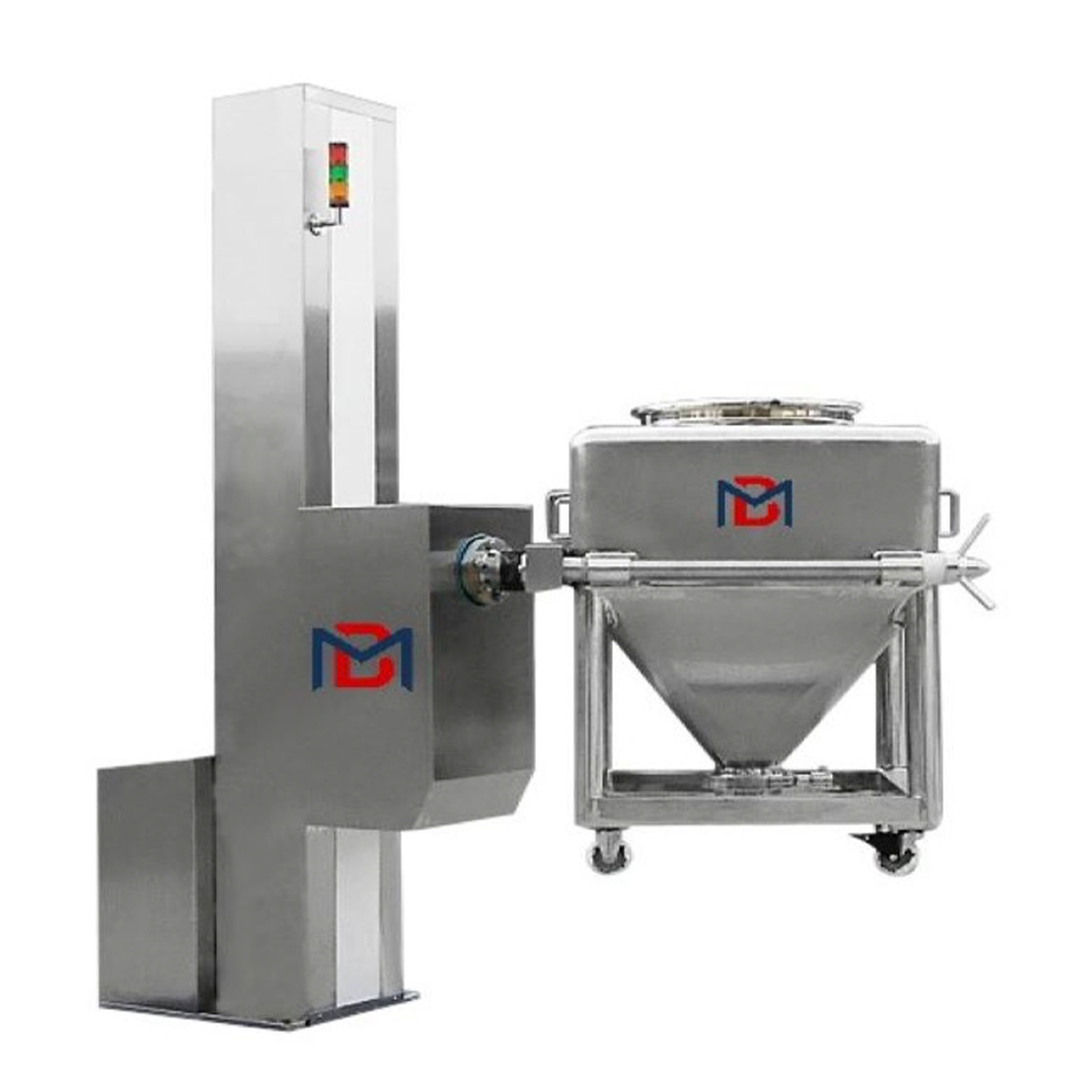

Bin blenders are used mainly for blending of dry powders for tablet production and capsule, which facilitates better flow for tablets and capsules. This is a closed contained, totally dust free single step transfer system. It can handle more than one size of container tumblers.
In granulation room the dry granules enter to the IPC container for blending through a dust free connection and the same IPC container is loaded over to the blender for blending. The IPC bin locked in the resting frame in 15° then lifted by hydraulic system in 15° inclined position after that the IPC bin rotates for blending with 3-dimension action. This same container after blending loaded over the tablet press for unloading in to the tablet press hoppers.
Salient Features
- All contact parts S.S. 316 & non-contact parts S.S. 304.
- Available Capacity: 1 kg to 500 kg batch size.
- Interchangeable different capacity IPC Bin can be used on same machine use for mixing.
- This is a closed and contained system where by a single step transfer material from Container of the Conta blender is transferred to the tablet press hopper.
- In granulation room the dry granules enter to the container for blending through a dust free connection and the same container is loaded over to the blender for blending.
- Totally dust free.
- Another advantage is adaptability of this system to handle more than one size of containers so processing of different sizes of production batches in single equipment.
- Enclosed rigid drive with reduction gear box and motor in the machine structure.
- Hydraulic power pack system for lifting of product bin for mixing.
- A suitable reeling around the cage with one entry point for the bin on detachable trolley.
- The charging hole with cover is provided on top with quick opening and closing arrangement with dust proof joints for particle free transfer.
- IPC Bin having discharge with butterfly valve and trolley for easy mobility.
- Electric controls panel with cycle time.
- Limit switch on entry door to prevent the accidental operation of the cage.
- Overload relay protection & Emergency stop button.
Optional Accessories
- PLC Controls with HMI touch screen.
- Flame proof motor and Push Button station.
- Interchangeable Product Container.
- AC Frequency variable drive for product container.
Technical Specification
| Model / Size | BMIPC 25 | BMIPC 50 | BMIPC 100 | BMIPC 300 | BMIPC 500 | BMIPC 750 | BMIPC 1000 | BMIPC 2000 |
| Gross Volume (Litters) | 25 | 50 | 100 | 300 | 500 | 750 | 1000 | 2000 |
| Working Volume (Litters) | 15 | 30 | 60 | 180 | 300 | 450 | 600 | 1200 |
| Motor (HP) | 2.0 | 2.0 | 3.0 | 3.0 | 5.0 | 5.0 | 7.5 | 10.0 |
