Application

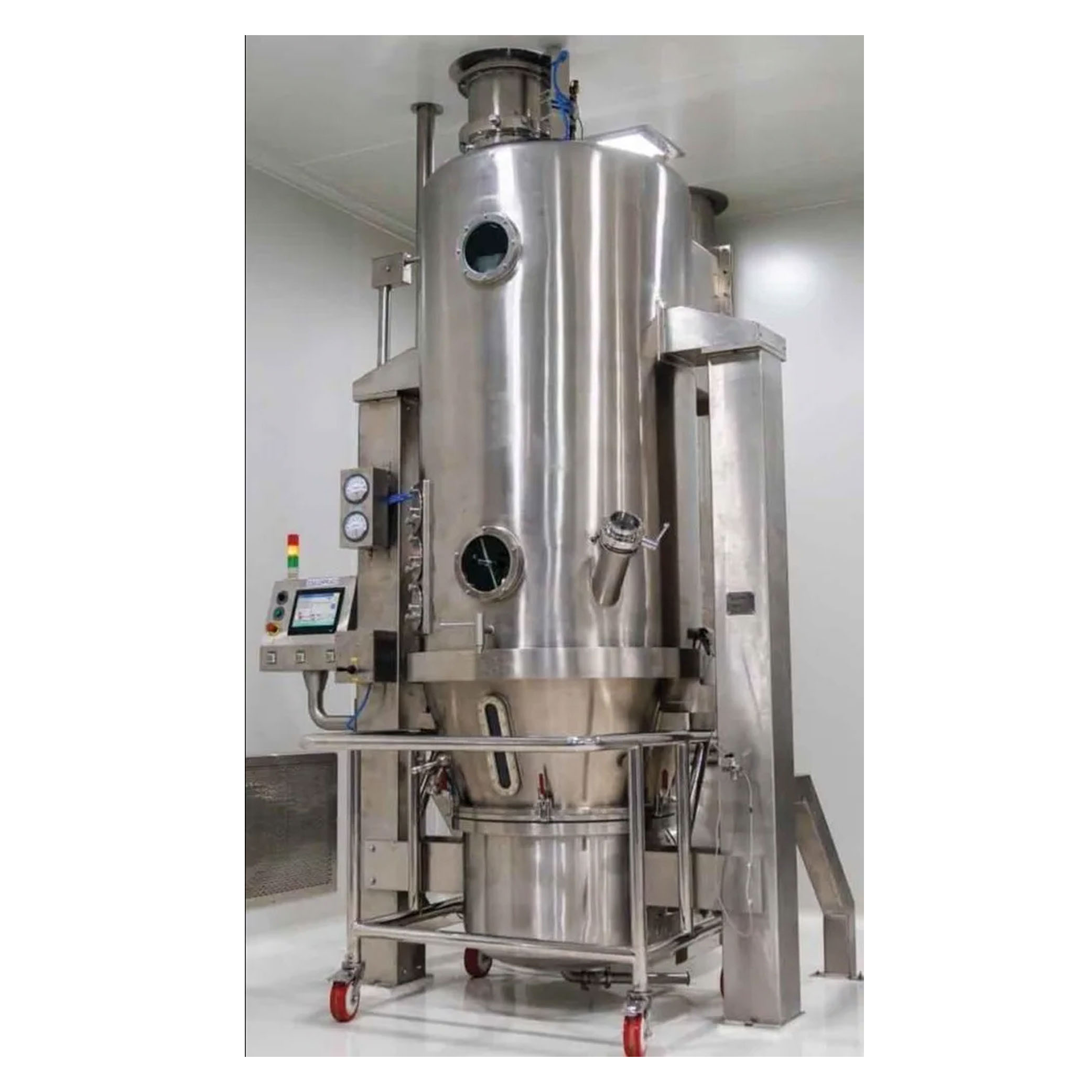

A Fluid Bed Dryer is a widely used industrial equipment designed to dry granular or powdered materials in a fluidized bed. It is commonly used in various industries, including pharmaceuticals, chemicals, food processing, and minerals, for efficient and uniform drying of materials.
A Batch of product loaded into the material bowl is seated in the chamber & heated filtered air is drawn through the product. By this, the entire surface of individual particle is surrounded by the hot air thus achieving a homogeneous distribution of temperature and as a result of this, a rapid and careful drying down to the smallest- residual moisture. Escape of material from the granulation chamber is prevented by exhaust filters, which are periodically agitated or purged to reintroduce the collected material into the fluidized bed. The product can be cooled and the material container exchanged for the next batch. The quantity of air is regulated by means of outlet air damper only.
Salient Features
- All contact parts S.S. 316 & non-contact parts S.S. 304.
- Single piece construction with Integrated retarding expansion chamber cum filter bag housing.
- Batch type dryer with available capacity 1 kg to 400 kg. Batch size.
- Three level pneumatic cylinder.
- Three level inflatable seals.
- Double Skin AHU with Pre, Micro and HEPA Filter.
- Exhaust Blower with VFD.
- Built in Explosion vents and isolation valve protect equipment.
- Temperature sensor provided at Inlet, product and exhaust.
- Washable filter media, FDA approved.
- Auto pneumatic filter bag shacking system.
- Sampling pot on product container.
- Electric and Pneumatic controls panel.
- Advance PLC controls with touch screen HMI.
Optional Accessories
- Steam or Electric Heater.
- Exhaust AHU with Filter.
- Silencer at exhaust blower.
- CIP - WIP system.
- Air Velocity Measurement.
- Inlet Air Humidity Measurement.
- Flame Proof Construction.
Technical Specification (Lab Scale)
| Model / Size | BMFBD 1 | BMFBD 2 | BMFBD 5 | BMFBD 10 |
| Working Volume (Kg) | 0.8 to 1.2 | 1.5 to 2.5 | 4.0 to 6.0 | 8.0 to 12.0 |
| Container Volume (Liters) | 2.5 | 4.5 | 12.5 | 25.0 |
| Blower Motor (HP) | 1.5 | 2.0 | 3.0 | 5.0 |
| C.F.M. | 350 | 450 | 700 | 800 |
| Steam Consumption (Kg/Hr) | 8 | 8 | 15 | 25 |
| Electric Heating (KW) | 7.5 | 7.5 | 10.0 | 15.0 |
| Approx. Weight (Kg) | 500 | 600 | 800 | 1000 |
Technical Specification (Production Scale)
| Model / Size | BMFBD 30 | BMFBD 60 | BMFBD 120 | BMFBD 150 | BMFBD 200 | BMFBD 250 | BMFBD 300 | BMFBD 400 |
| Working Volume (Kg) | 20 to 30 | 45 to 60 | 100 to 120 | 130 to 150 | 170 to 200 | 220 to 250 | 260 to 300 | 350 to 400 |
| Container Volume (Liters) | 90 | 180 | 360 | 450 | 600 | 750 | 900 | 1200 |
| Blower Motor (HP) | 7.5 | 12.5 | 20.0 | 25.0 | 30.0 | 40.0 | 40.0 | 50.0 |
| C.F.M. | 1200 | 2000 | 2700 | 3200 | 3500 | 4000 | 4500 | 5000 |
| Steam Consumption (Kg/Hr) | 45 | 65 | 90 | 120 | 160 | 180 | 225 | 300 |
| Electric Heating (KW) | 25 | 45 | 60 | 65 | 72 | 80 | 90 | 100 |
| Approx. Weight (Kg) | 2000 | 2500 | 2700 | 2800 | 3000 | 3200 | 3500 | 4000 |
