Application

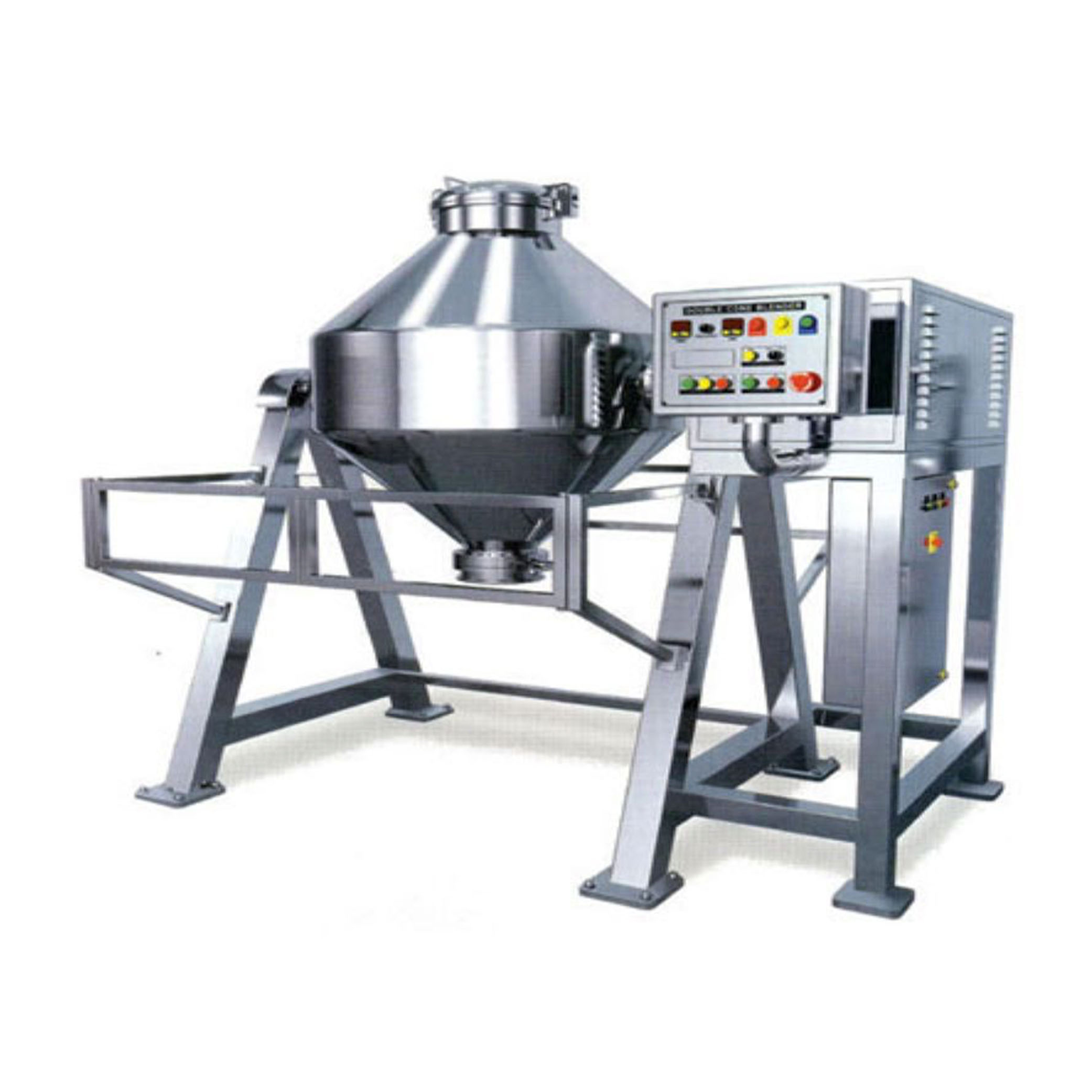

The Double shape blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free-flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbles the material in the container and spread out.
Salient Features
- All contact parts S.S. 316 & non-contact parts S.S. 304.
- Available Capacity: 1 kg to 500 kg batch size.
- Double Cone shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch.
- Enclosed rigid drive with reduction gear box and motor.
- Product container having discharge with butterfly valve and man hole.
- Charging hole with hinged lid with seal for charging and cleaning.
- Safety reeling provided for rotating area of product container.
- Fixed baffles provided for lumps braking.
- Electric controls panel with cycle time.
- Safety reeling with limit switch.
- Overload protection and emergency stop.
Optional Accessories
- Variable speed for product container by VFD.
- PLC Controls with HMI touch screen./li>
- Flame proof motor and Push Button station.
- Inline milling and loading with vacuum transfer systems.
Technical Specification
| Model / Size | BMDCB 25 | BMDCB 50 | BMDCB 100 | BMDCB 300 | BMDCB 500 | BMDCB 750 | BMDCB 1000 | BMDCB 2000 |
| Gross Volume (Litters) | 25 | 50 | 100 | 300 | 500 | 750 | 1000 | 2000 |
| Working Volume (Litters) | 18 | 35 | 70 | 210 | 350 | 450 | 700 | 1400 |
| Motor [HP] | 1.0 | 2.0 | 3.0 | 3.0 | 5.0 | 7.5 | 10.0 | 15.0 |
