Application

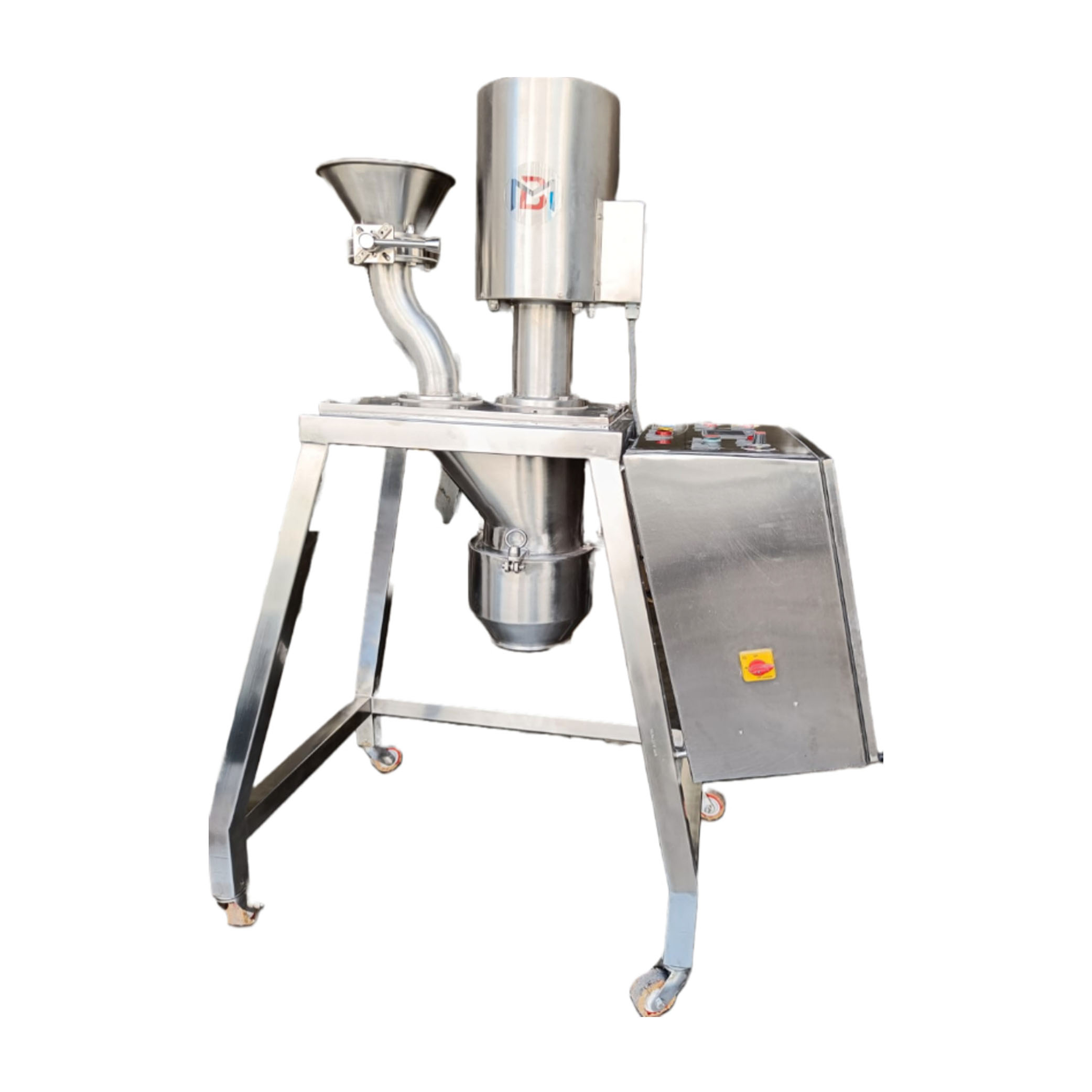

A Co-Mill, also known as a Conical Mill, The Co-Mill operates on the principle of size reduction and particle disintegration through the combined action of impellers and screen. It consists of a conical-shaped rotor or impeller that rotates inside a conical screen. The material to be processed is fed into the centre of the Co-Mill through a hopper.
As the rotor rotates at high speed, the material gets pulled towards the blades on the impeller, where it is subjected to mechanical forces. The particles collide with the impeller blades and the conical screen, resulting in size reduction and particle disintegration. The desired particle size is achieved by adjusting the rotor speed and the size of the holes in the screen.
Salient Features
- The fines generated are on the lower side as compared to other mills.
- All contact parts S.S. 316 & non-contact parts S.S. 304.
- Size reduction mill in a vacuum rated design.
- Detachable sieve design to accommodate user’s requirements.
- Equipment is designed on trolley with PU castor wheel for ease of movement .
Optional Accessories
- Extra Set of Milling Blade (Multi Mill Impeller).
- Multi Mill Sieve.
- Flame Proof Construction.
Technical Specification
| Model / Size | BMCM 250 | BMCM 500 | BMCM 750 |
| Output (Kg/Hr) * | 250 | 500 | 750 |
| Screen Span (mm) | 250 | 400 | 520 |
| Motor (HP) | 5 | 7.5 | 10.0 |
