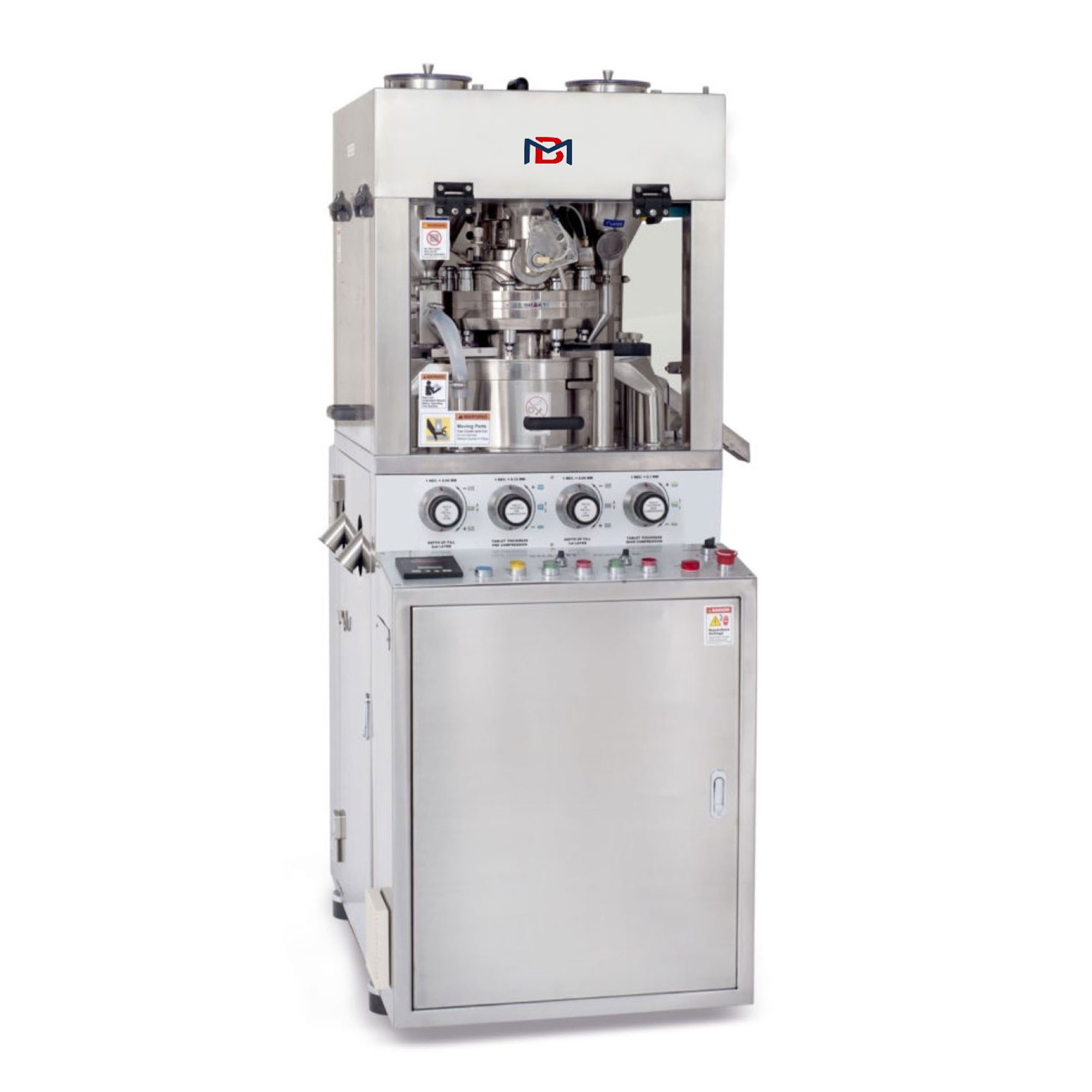

BI-Layer Lab Press

Application

This Single sided R & D Double Layer Tablet Press fully conforms to GMP and the safety requirements, featuring versatility with a quick change of tooling.

For the suitable adjustment during double-layer tablet development, fully independent weight, height and hardness system are used for both the first and second layer. The Turret is driven centrally by a motor and reduction gearbox. The turret speed is adjusted by A.C. Frequency drive. It’s available in Regular Model D’ Tooling or B’ Tooling Multi Tooling – D+B & DB.

Salient Features

• Machine design as per cGMP.
• All contact parts SS 316 & non-contact parts SS 304.
• Central pillar drive system fitted with gearbox.
• The speed of the Turret is adjustable through ACVF variable drive system.
• The Speed of the Force feeder Adjustable with A.C.V.F. Variable drives system.
• All Electrical Controls on Touch Screen.
• Machine with Pre-Compression.
• Double Compression Mechanism for Double Layer Tablet.
• Dust Suction Nozzle Arrangement.
• Tablet Thickness & Weight adjustment controls outside compression zone.
• Turret Die plate & material contact parts are made of SS 316.
• Three-piece Turret with keyway to suites any shaped Tablet Punches.
• Outside controls for quick setting of Tablet thickness & Weight adjustment.
• Gravity feeding system for Easy charging of granules & minimum wastage of material.
• Force Feeder system for Second layer.
• First layer Pneumatic ejection for checking weight.
• All Guards magnet catch with Stainless steel Covers.
• Lower cam track can change without lifting Turret & no need of any setting.
• Charging Hopper with Powder Level window and material stop Cock facility.
• Utilizes “TSM” or “EU” “B”, “D” and “BB” standard tool configurations.
• Lower roll carrier Oil tray with SS 304 material.
• All Electrical Components are CE approved.
• Minimum 3 mm thickness tablet can be press.
• Bottom Plate inside/outside Cladded with SS 304.
• Turret & Cam Tracks Processed by Electrode less Nichol Plated (ENLP) for Long life.
• Special R & D Purpose machine with Combined “B”, “BB” & “D” Tooling available.
• Pressure Roller & Pins are processed with hard heat-treatment.
• Low noise level.
• Upper guard & Lower side guard interlocking for operator’s safety.
• Miniature Circuit Breaker for over load Protection as a Safety Feature.
• Electrical voltage & frequency can be provided as per customers’ requirements.

Technical Specification

*Machine output mention is rated outputs and can vary depending on the product characteristics, tablet dimensions/shape/size/depth of fill/ambient condition/operator skills & machine maintenance.
